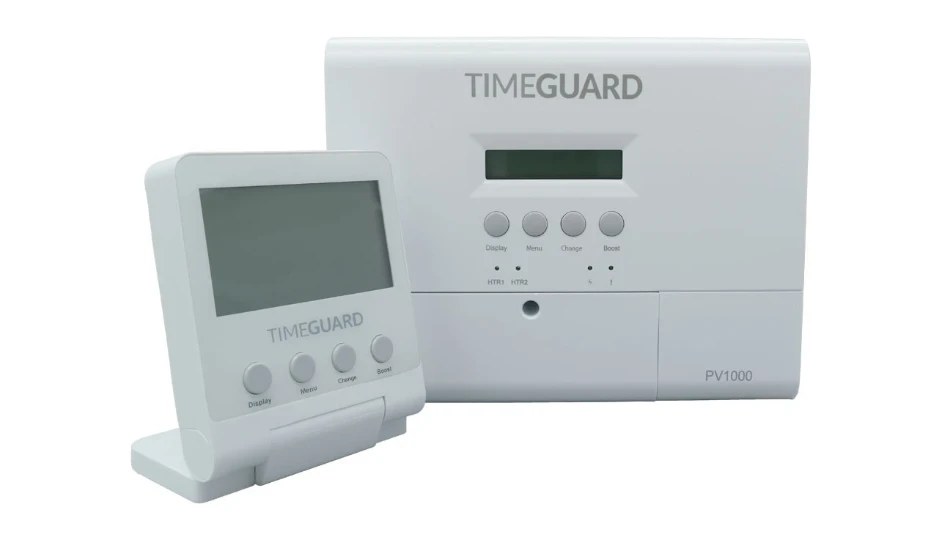

Boostmaster PV Boost Immersion Controller

Product Code: PV1000

Boostmaster PV Boost Immersion Controller
3-year guarantee Icon
Boostmaster PV Boost Immersion Controller

Boostmaster PV Boost Immersion Controller

Product Code: PV1000

  • All-in-one solution with main unit, display unit and sender
  • Redirects excess solar energy to your immersion heater, heating your water for free
  • View the total kWh saved during today, yesterday, 7 days, 28 days and total days via the main PV Boost unit or display unit
  • Cut in threshold of 100W of excess current before switching on
  • Boosts of 15-minute timed increments up to 2 hours
  • Wireless display unit can be positioned up to 30m away from the PV Boost main unit
  • Fixing accessories and clamp included
  • 3-year guarantee

Additional Information

Colour
White
Compliance
EN300220, EN301489-1, EN301489-3, EN61010-1, EN60730-2-7, EN50663:2017-EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
Degree of protection (IP rating)
IP20
Depth of device
88mm
Frequency
50Hz
Height of device
432mm
Material
Plastic
Mounting method
Other
Surface finish
Matt
Time setting
15 - 120min
Width of device
214mm

ITEM
LAST UPDATED

Product Data Sheet (PDF) - DS1439 V1.0 - PV1000.pdf
21/04/2026
Product Video (Youtube) - https://www.youtube.com/embed/A5Xz_CvVHbo
15/06/2026
Product Instruction Sheet (PDF) - INS 1114 V2.5 - PV Boost Controller.pdf
21/04/2026
